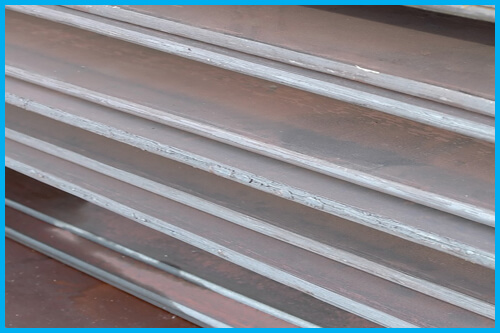

HITEN 780LE


The Hiten 780LE is a high quality steel plate fabricated utilizing a Micro-alloying and Thermo Mechanically Controlled Process. This methodology permits this plate to have an unrivalled surface quality, fantastic weldability, better framing and higher charpy values than extinguished and tempered plate. A brilliant substitute for A514.

HITEN 780LE are made by utilizing heading advances including controlled moving and least micro-alloying, subsequently, giving great weldability and high sturdiness over in low temperature (-40°c) locales.




CHEMICAL COMPOSITION

Brand name
(applicable plate thickness)
Chemical composition (%)
C Si Mn P S Cu Ni Cr Mo V Nb B Ti Ceq
Hiten 780LE (6-200mm) 0.20 max 0.40 max 1.40 max 0.025 max 0.015 max ….. ….. 0.20 max 0.15 max 0.08 max ..... 0.005 max .... 0.40 max

MECHANICAL PROPERTIES

Tensile test
Yield point or proof stress (N/mm2) Tensile strength (N/mm2) Elongation Test piece JIS
Thickness (mm) Min.elongation (%)
685   N/mm2 min. 780 – 930  N/mm2



Thick – 16
16 < t
20 < t
16
24
16
No 5
No 5
No 4

APPLICATION

   Bridges
   Oil Tanks
   Various Spherical Holders
   Various Offshore Structures
   Gates, Penstocks
   Civil Engineering and Industrial Machinery
