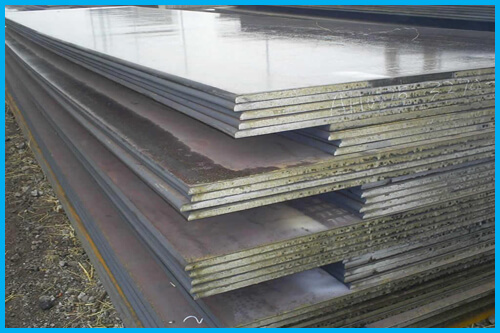

ABREX 500


Abrex 500 is a wear resistant plate series form NSSMC.

The utilization of abrasion resistance ABREX 500 steel plate particularly lessens the weight of structural parts presented to serve grating conditions. Contrast and consistent steel, ABREX steel plate decreases structural weight and conveys monetary benefits. Selection of elite abrasion resistant ABREX 500 will delay the administration life of apparatus and part.

ABREX 500 is through solidified abrasion resistant steel with a run of the mill hardness of 515 BHN. ABREX 500 PLATES are the most generally utilized of the wear safe evaluations. ABREX 500 plate display an amazing blend of high resistance to impact, workability, weld capacity and resistance to abrasion. ABREX 500 plate has around 3 times the scraped spot safety of basic steel plate and helps drawing out the administration life of mechanical parts.and ABREX 500 from 05mm ~ 50mm thickness.




SPECIFICATION ABREX 500:

   Size: 5mm ~ 120 mm
   Width: Up to 3000 mm
   Length: Up to 12000 mm

APPLICATION

   Dump Truck Liners
   Cutting Edges
   Drag line Bucket Wear Liners
   Screen Plates - Chute Liners
   Conveyor Buckets
   Hoppers
   Ore Scrapers

CHEMICAL COMPOSITION

Grade C max Si max Mn max P max S max Ni max Cr max Mo max B max
Abrex 500 0.35 0.70 2 0.015 0.010 1.00 1.20 0.60 0.005

MECHANICAL PROPERTIES

Grade Mechanical Property Charpy V Impact Test
ABREX 500 HBW Thickness/Mpa Elongation Degree longitudinal
4-32MM 470-530 Min  % -40 J
(32)-80 450-540 10 40


Download Abrex 500 Plates PDF

View Abrex 500 Plates PDF
