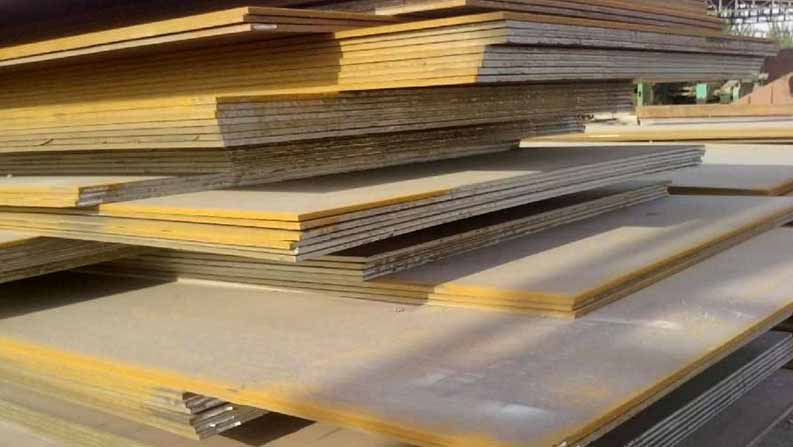

Rockstar 400 Plate
Vandan Steel & Engg. Co. can become a recognized industry, capable of producing and supplying high-quality ROCKSTAR 400 blades. We are customer-oriented and supply these boards in several standards, widths, lengths, heat treatments and styles . Specifications for special applications also can be provided. Our products meet various quality standards. The wear-resistant ROCKSTAR 400 PLATTEN welding plate has good versatility, like formability, hardness, wear resistance and flatness. Manufacturing requirements.
Rockstar 400, Rockstar 400 Plate,Rockstar 400 Plate Manufacturers, Rockstar 400 Plate Distributors, Authorized Distributors Of Rockstar 400 Plate,Rockstar 400 Plate Importers, Authorized Importers Of Rockstar 400 Plate, Rockstar 400 Platestockist ,authorized Stockist Of Rockstar 400 Plate, Rockstar 400 Plate Dealers, Authorized Dealers Of Rockstar 400 Plate,Rockstar 400 Plate Suppliers,Rockstar 400 Plate Exporters, Rockstar 400 Plate Traders.
Rockstar 400 has been delivered to customers on the average . Specially developed waste recycling can ensure minimal ductility.Rockstar 400 is right for yellow mining products. Kstar 400 is that the ideal solution for applications like excavators, crushers and truck linings. It also can be found in silos, excavators, conveyor pipes and silos. vacuum , sweeping and tilting the ground . The label is reinforced to make sure the mechanical properties of ROCKSTAR 400. it'll harden quickly and harden again when necessary. After use, it cannot maintain any exchange state outside the temperature range of 250°C. Rockstar 400 isn't suitable. Wear-resistant plates made from manganese, carbon, molybdenum, chromium, sulfur, phosphorus, silicon, boron, nickel and other chemical materials are often used. The palette are often utilized in a spread of applications. These inserts are equipped with heated cutting edges.Various processes like cutting, testing, forming, machining, grinding, etc. are usually performed on these plates with none problems.
ROCKSTAR 400 printing plates must undergo strict control before being shipped to customers round the world. Testing, ultrasonic testing, mechanical strength testing, chemical testing, etc.
ROCKSTAR 400 Plate Specification :
- Item: Abrasion Resistant Plate
- Thickness : 6mm to 75mm
- Length : 6,000mm to 12,000mm
- Width : 1,500mm to 2,500mm
- Production : Hot-Rolled (HR) / Cold-Rolled (CR)
- Applications : concrete industry, metallurgy, fan industry, coal industry, mining machinery, construction machinery,etc.
- Heat Treatment: N, Q+T
- Material : ROCKSTAR 400 Plates, ROCKSTAR 400 Abrasion Resistant Steel Plates, ROCKSTAR 400 Wear Resistant Plates
ROCKSTAR 400 PLATES CHEMICAL COMPOSITION
| Plate Thickness | C | Mn | P | S | Si | Cr | Ni | Mo | B | CE | PCM |
|---|---|---|---|---|---|---|---|---|---|---|---|
| mm | Max % | Max % | Max % Max % Max % | Max % | Max % | Max % | Max % | Max | Max | ||
| 6.0 – 20.0 | 0.16 | 1.60 | 0.025 | 0.010 | 0.70 | 0.50 | 0.25 | 0.25 | 0.0040 | 0.45 | 0.28 |
| 21.0 – 32.0 | 0.18 | 1.60 | 0.025 | 0.010 | 0.70 | 1.00 | 0.25 | 0.25 | 0.0040 | 0.48 | 0.29 |
| 32.1 – 50.0 | 0.22 | 1.60 | 0.025 | 0.010 | 0.70 | 1.40 | 0.50 | 0.60 | 0.0040 | 0.57 | 0.33 |
| 50.1 – 75.0 | 0.22 | 1.60 | 0.025 | 0.010 | 0.70 | 1.40 | 0.50 | 0.60 | 0.0040 | 0.65 | 0.40 |
ROCKSTAR 400 PLATES MECHANICAL PROPERTIES
| Hardness | 360-430 BHN (On a milled surface 0.5-2 mm below the plate surface) | |||
|---|---|---|---|---|
| Yield Strength (MPa) | Tensile Strength (MPa) | % Elongation | Impact at -30°C | |
| (L0=50 mm) | (In Joules) | |||
| Typical values for 20 mm | 1000 | 1250 | 12 | 40 |
